LIMITATION ON DAMAGES.NEITHERWITTE SOFTWARE NOR ANYONE INVOLVED IN THE CREATION, PRODUCTION, OR DELIVERY OF THIS SOFTWARE SHALLBE LIABLE FOR ANY INDIRECT, CONSEQUENTIAL, OR INCIDENTAL DAMAGES ARISING OUT OF THE USE OR INABILITYTO USE SUCH SOFTWARE EVEN IF WITTE SOFTWARE HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ORCLAIMS. IN NO EVENT SHALL WITTE SOFTWARE’S LIABILITY FOR ANY DAMAGES EXCEED THE PRICE PAID FOR THELICENSE TO USE THE SOFTWARE, REGARDLESS OF THE FORM OF CLAIM. THE PERSON USING THE SOFTWARE BEARSALL RISK AS TO THE QUALITY AND PERFORMANCE OF THE SOFTWARE.Serial:Modbus over serial line. RS232 or RS485. A USB serial converter can be used.Modbus TCP/IP:Select TCP/IP if you want to communicate with a MODBUS TCP/IP network. In this case, slave ID is thesame as the Unit ID used in MODBUS TCP/IP.The port number is default 502.If the connection fails then try if you can ping your device at the command prompt. If the ping command fails then Modbus Poll fails too.Modbus UDP/IP:Select UDP/IP if you want to communicate with a MODBUS UDP/IP network.
This is the same as ModbusTCP/IP but the connection less UDP protocol is used instead.Modbus RTU/ASCII over TCP/IP:This is a RTU or ASCII message send over a TCP/IP network instead of serial lines.Modbus RTU/ASCII over UDP/IP:This is a RTU or ASCII message send over a UDP/IP network instead of serial lines. The use of RTS controlled RS232/RS485 converters should be avoided if possible.It is difficult to determine the exact time when to switch off the transmitter with non real-timeoperating systems like Windows and Linux. If it is switched off too early characters might still sitin the FIFO or the transmit register of the UART and these characters will be lost. Hence the slavewill not recognize the message.
Since you already have the Modpoll 3rd party PC master, you might consider reading some non-zero data from the slave device so that you can observe whatever feedback (blinking LEDs) the RS-485 port has for the slave device and gain the confidence that the slave does indeed talk Modbus. MODBUS exceptions do not cover the application level, i.e., what is illegal in the particular application one wrote, only what is illegal for MODBUS per se. So your examples are not valid for MODBUS. How to transfer contacts from itunes to iphone xr. For example, MODBUS assumes a register is a 16-bit entity, so any value between 0 and 65535 (decimal = FFFF hex) is valid to be written to / read.
Modbus Poll Download
On the other hand if it is switched off too late then the slave’s messageis corrupted and the master will not recognize the message. DSRDSR specify whether the DSR (data-set-ready) signal is monitored for output flow control.
If this member is TRUE and DSR is turned off, output is suspended until DSR is sent again. CTSCTS specify whether the CTS (clear-to-send) signal is monitored for output flow control. If this checkbox is enabled and CTS is turned off, output is suspended until CTS is sent again. DTRDTR specifies whether the DTR will be enabled or disabled whenever the port is opened. Remove EchoIf your device or RS232/RS485 converter echoes the chars just sent. The scan rate can be set from 0 to 3600000ms.
Note that setting the scan rate lower than the transactiontime does not make sense. If a serial connection at 9600baud is used and 125 registers are requestedthe transaction time is roughly 8 + 2 + 250 + 2 = 262ms + the gap (3.5 char time) between the requestand the response.
Modbus enables communication among many devices connected to the same network, for example, a system that measures temperature and humidity and communicates the results to a computer. Modbus is often used to connect a supervisory computer with a remote terminal unit (RTU) in supervisory control and data acquisition systems.
In this case setting the scan rate at e.g. 100ms do not make sense as the transaction timeis at least 262ms + delay in the slave (gap) + min time between polls. (Set in the connection dialog F3).
Dealing with 32-bit values in Modbus is NOT unique to Enron-MB. However, Enron-MB takes the debatable step of returning 4-bytes per register instead of the 2-bytes implied by the term 'holding register' in the Modbus specification.
This means a poll of registers 4x5001 and 4x5002 in Enron-Modbus returns 8-bytes or two 32-bit integers, whereas Standard Modbus would only return 4-bytes or one 32-bit integer treated as two 16-bit integers. In addition, polling register 4x5010 in Enron-MB returns the tenth 32-bit long integer, whereas Standard Modbus would consider this 1/2 of the fifth 32-bit long integer in this range. Public doc1 As Object Public doc2 As Object Public app As Object Dim res As Integer Dim n As Integer Private Sub StartModbusPollClick Set app = CreateObject ( 'Mbpoll.Application' ) Set doc1 = CreateObject ( 'Mbpoll.Document' ) Set doc2 = CreateObject ( 'Mbpoll.Document' ) ' Read 10 Holding Registers every 1000ms res = doc1. ReadHoldingRegisters ( 1, 0, 10, 1000 ) ' Read 10 Coil Status every 1000ms res = doc2. ReadCoils ( 1, 0, 10, 1000 ) ' doc1.ShowWindow app. Connection = 1 ' Modbus TCP/IP app. IPAddress = '127.0.0.1' ' local host app.

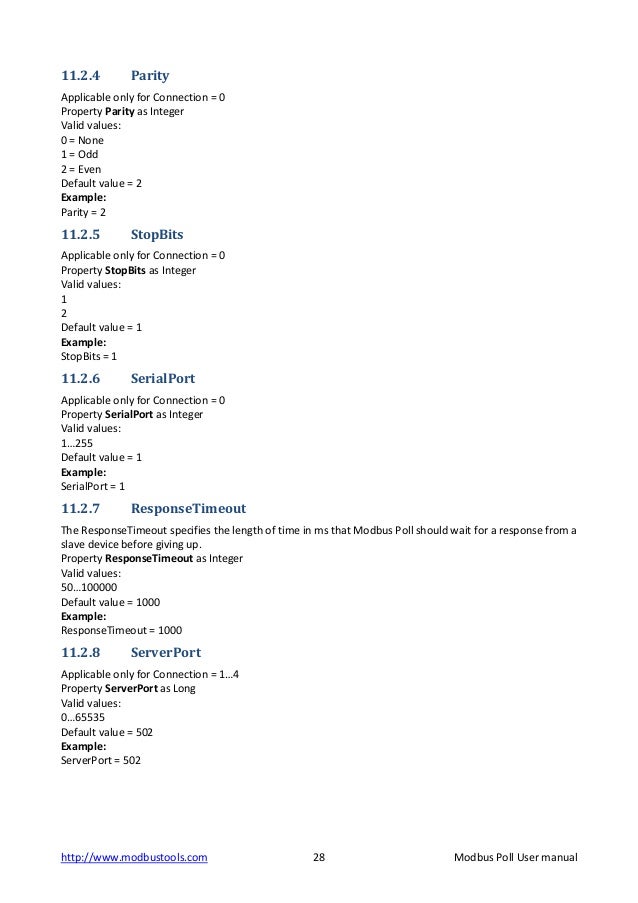

ServerPort = 502 app. ConnectTimeout = 1000 res = app. OpenConnection End Sub Private Sub ReadClick Cells ( 5, 7 ) = doc1.
ReadResult 'Show results for the requests Cells ( 6, 7 ) = doc2. ReadResult For n = 0 To 9 Cells ( 5 + n, 2 ) = doc1. SRegisters ( n ) Next n For n = 0 To 9 Cells ( 18 + n, 2 ) = doc2.
Coils ( n ) Next n End Sub. 0 = SUCCESS1 = Serial Port not available3 = Serial port.
Not possible to get current settings from port driver.4 = Serial port. Serial port driver did not accept port settings.5 = Serial port. Serial port driver did not accept timeout settings.12 = TCP/UDP Connection failed. WSA start up13 = TCP/UDP Connection failed. Connect error14 = TCP/UDP Connection failed.
Timeout15 = TCP/UDP Connection failed. IOCTL17 = TCP/UDP Connection failed. Socket error21 = TCP/UDP Connection failed. Address information. Modbus exceptions are errors returned from the slave device.
Exception codeDescriptionIllegal FunctionThe function code received in the query is not an allowable action for the server (or slave). This may be because the function code is only applicable to newer devices, and was not implemented in the unit selected.
Modbus Poll Connection Failed To Server
It could also indicate that the server (or slave) is in the wrong state to process a request of this type, for example because it is not configured and is being asked to return register values.Illegal Data AddressThe data address received in the query is not an allowable address for the server (or slave). More specifically, the combination of reference number and transfer length is invalid. For a controller with 100 registers, a request with offset 96 and length 4 would succeeds, a request with offset 96 and length 5 will generate exception 02.Illegal Data ValueA value contained in the query data field is not an allowable value for server (or slave). This indicates a fault in the structure of the remainder of a complex request, such as that the implied length is incorrect. It specifically does NOT mean that a data item submitted for storage in a register has a value outside the expectation of the application program, since the MODBUS protocol is unaware of the significance of any particular value of any particular register.Slave Device FailureAn unrecoverable error occurred while the server (or slave) was attempting to perform the requested action.AcknowledgeSpecialized use in conjunction with programming commands. The server (or slave) has accepted the request and is processing it, but a long duration of time will be required to do so. This response is returned to prevent a timeout error from occurring in the client (or master).
Enable Lan Connection Failed
The client (or master) can next issue a Poll Program Complete message to determine if processing is completed.Slave Device BusySpecialized use in conjunction with programming commands. The server (or slave) is engaged in processing a long–duration program command. The client (or master) should retransmit the message later when the server (or slave) is free.
